For use with ZETZ-24, ZETZ-25 and AZTC-20.

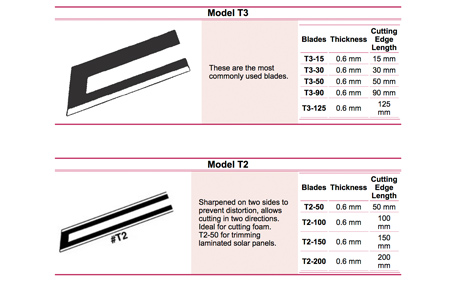

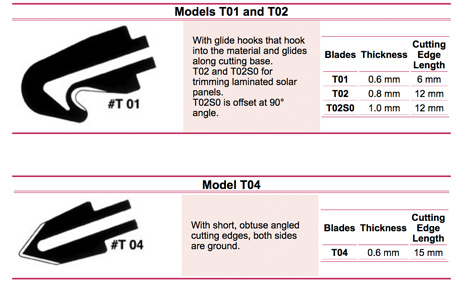

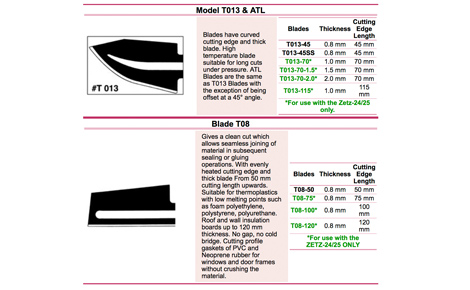

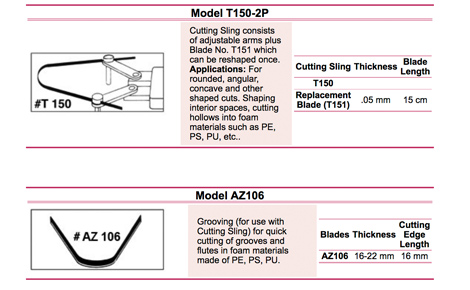

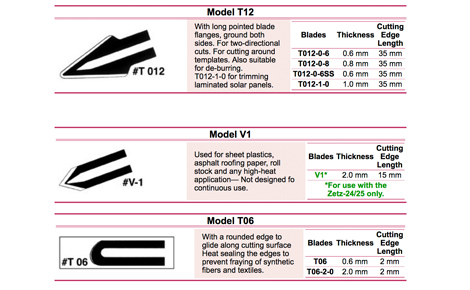

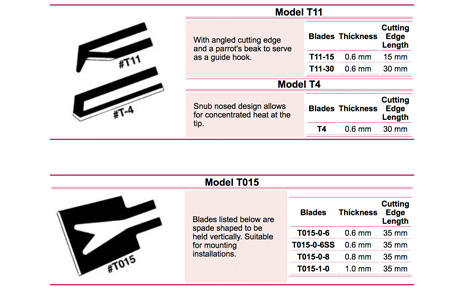

Choose the Hot Knife blade to suit the purpose. These Hot Knife blades are designed so that heat is concentrated along the cutting edge in order to achieve the optimum cutting temperature. Prior to insertion in the material to be cut, the temperature of the blades will be between 100°C and 800°C, depending on the type of blade and the thermocutter used. The temperature to the blade cools down as it enters the material. The temperature depends on the thermal properties and heat conductivity of the material being cut and determines the cutting speed. The cutting edge is evenly heated because of the design of the blade's cutting flanges.

Click on Order Now button to see a detailed description of each blade.

Blades with "SS" as part of their Model Number represent Stainless Steel Blades.

Features

• Cutting and deburring of:
  Natural and synthetic rubber, Rubber sheets 30-80 Shore, Rubber with textile, PVC boards, foils and sheets, Cutting off and heat sealing fabric piles, industrial tubings, profile gaskets, Car trim and upholstery, cutouts in instrument panels, Roof and wall insulation boards up to 125 mm thickness of foam PE, PS, PU. No gap, no cold bridge, Cutting out silicone gaskets for construction joints, Floor and wall claddings, including bituminous materials, Stress-free cutting of profile gaskets of PVC and Neoprene rubber for window and door frames, Clean cuts for subsequent welding or gluing, Electrical installations like conduit and trunking channels. Insulating cables and leads,
