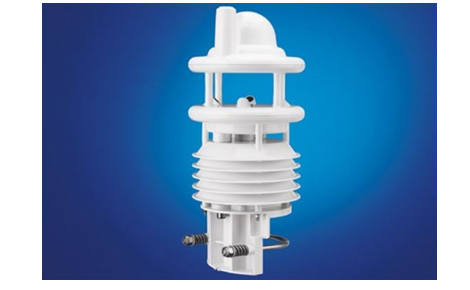

Compact Weather Station, WS-700, Item: 8380-U01

Compact Weather Station for measuring of air temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, air pressure, wind direction, wind Speed and radiation.

Relative humidity is measured by means of a capacitive sensor element; a precision NTC measuring element is used to measure air temperature. Precipitation is measured by a 24 GHz Doppler radar, which measures the drop speed of an individual drop of rain/snow. Precipitation quantity and intensity are calculated from the correlation between drop size and speed. The difference in drop speed determines the type of precipitation (rain/snow).

Measurement output can be accessed by the following protocols: UMB-Binary, UMB-ASCII, SDI-12, MODBUS. One external temperature sensor is connectable. Comes with a 10m cable.

Special features:

• All in One
• Aspirated temperature/humidity measurement
• Maintenance-free operation
• Open communication protocol: UMB-ASCII, UMB-Binary, SDI-12, MODBUS, Analog outputs in combination with 8160.UDAC.

Download our Information Sheet here.

Features

Technical Data

Additional Equipment

• Uses ultrasonic technology for precise wind speed measurement, and is tested in a high-precision wind tunnel, so accuracy is guaranteed.

• Lufft WS700-UMB Compact Weather Station	8380-U01
  Dimensions	Ø approx. 150mm, height approx. 317mm
  Weight	Approx. 1.5kg
  Interface	RS485, 2-wire, half-duplex
  Operating Voltage	4...32 VDC
  Operating temperature	-50...60°C Accuracy: ± 0.2 °C (–20 °C ... +50 °C), otherwise ± 0.5°C (>–30°C)
  Operating rel. humidity	0...100% RH Accuracy: ± 2% RH
  Precipitation quantity	Resolution: 0.01mm Measuring range: Drop size 0.3...5mm Reproducibility: Typ.>90%
  Radiation	Response Time 95% <1s Spectral range: 300 to 11nm Measuring range: 1400W/m Accuracy: 5%
  Air Pressure	Principle: MEMS capacitive Measuring range: 300..1200hPa Accuracy: ± 0.5hPa (0..+40°C)
  Wind Direction	Principle: Ultrasonic Measuring range: 0..75m/s Accuracy: ±0.3m/s or 3% (0..35m/s) RMS of reading, whichiver is greater ±5% (>35m/s) RMS Resolution: 0.1
  Heating	20VA at 24 VDC
  Cable length	10m
  Protection level housing	IP66
  Mast mounting suitable for	Mast diameter 60 - 76mm

• Accessories
  Click on Below Links to Purchase or See additional Info.
  Surge protection	8379-USP, Request by Quote.
  Power supply 24V/2.5A	8366-USV4
  Power supply 24V/4A	8366-USV1
  Traverse Mounting Bracket	8367-TRAV1
  Digital-analog-converter	8160-UDAC
  Temperature Sensor WT1	8160-WT1
  Rain sensor WTB100	8353-10
  WS Cables	8370-UKAB (several lengths available)
  Tripod, Portable Tripod Mast 6 to 10 ft	ME905
  Converter Cable RS485 to USB	8160-RS485USB
  GPRS/GSM modem with Camera Port	8160-MODVIOLA
  RS232 Connection Cable	8160-KAB
  Netronix node with Thiamis ICU	RN500ICU820
  Surge Protector for night vision cameras	8379USPRJ45
